N20 Encoder Motor 12V 200RPM

$10.00

Encoder motor for small robots

45 in stock

SKU: N20-ENC Category:

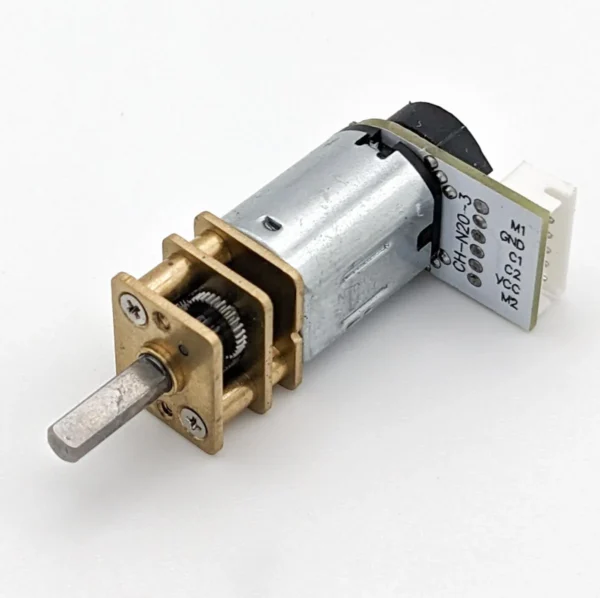

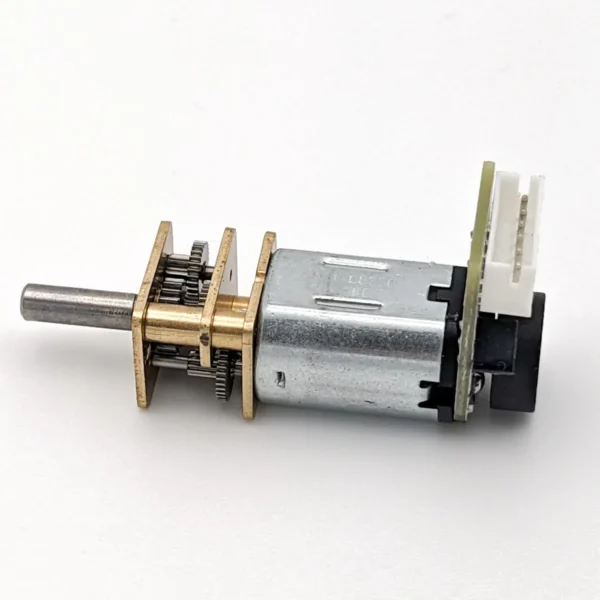

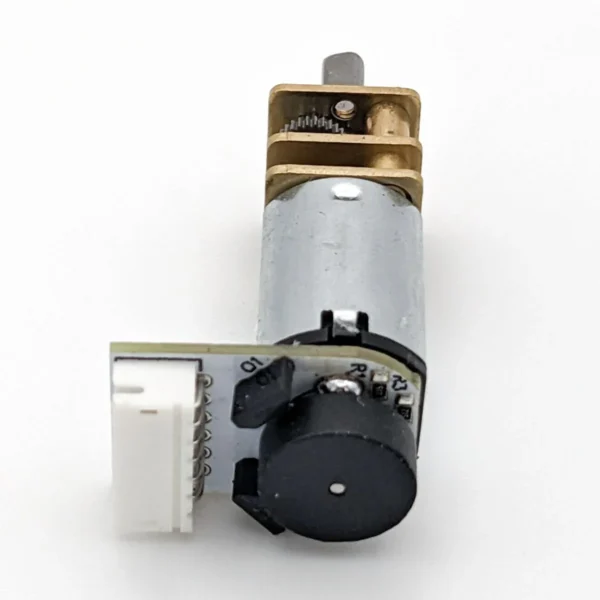

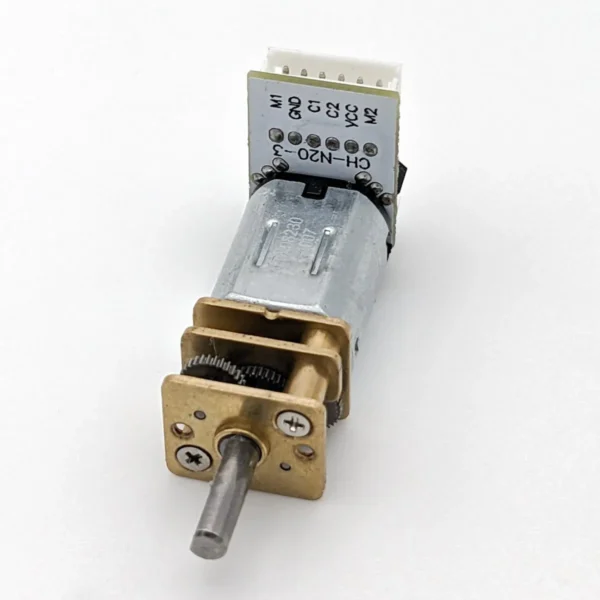

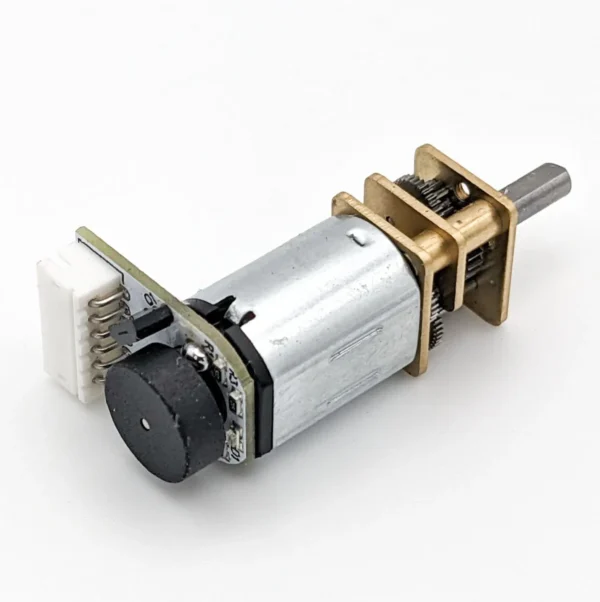

N20 brushed DC motor with encoder. Compact, yet surprisingly powerful when connected to a 12V supply.

I use this motor a lot. Coupled with the 43mm wheel, this particular gear reduction ratio gives me fast (0.4m/sec), yet powerful motion for small (1-2lbs, ~120mm) two-wheel differential robots (including over low pile carpets).

Recommended Use:

Technical Specifications:

Voltage 3V 6V 12V
No Load Speed, RPM 50 100 200
Rated Speed, RPM 38 75? 150
Rated Torque, kg*cm 0.45 0.8 1.6?
Max Torque, kg*cm 1.2 2.4 4.8?
No Load Current, A 0.018 0.03 0.075
Rated Current, A ≤0.1 ≤0.15 ≤0.3
Stall Current, A 0.2 0.4 0.9
  • Model JGA12-N20B, gear reduction ratio 150
  • Quad encoder; encoder voltage 3.3-5V; 7 pulses per rotation
  • 3D STEP model (not 100% exact)
  • Please refer to the enclosed drawing for dimensions
  • Weight approx. 11.7g

Warnings:

  • This product contains small parts. Keep away from small children.
Weight 0.1 lbs
Dimensions 6 × 6 × 2 in
