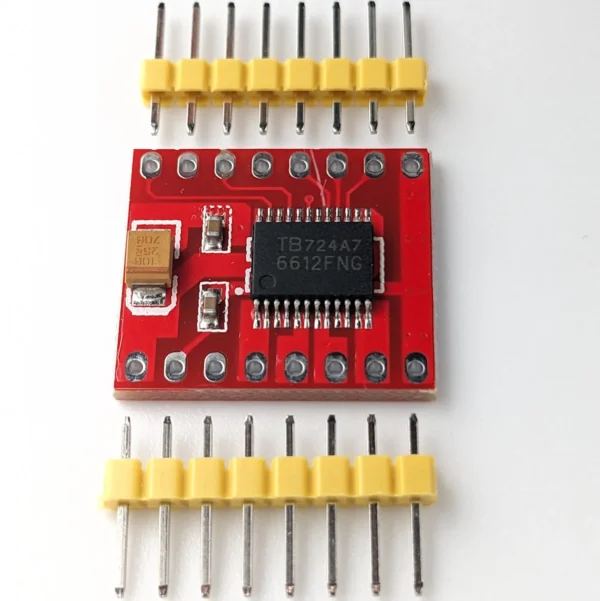

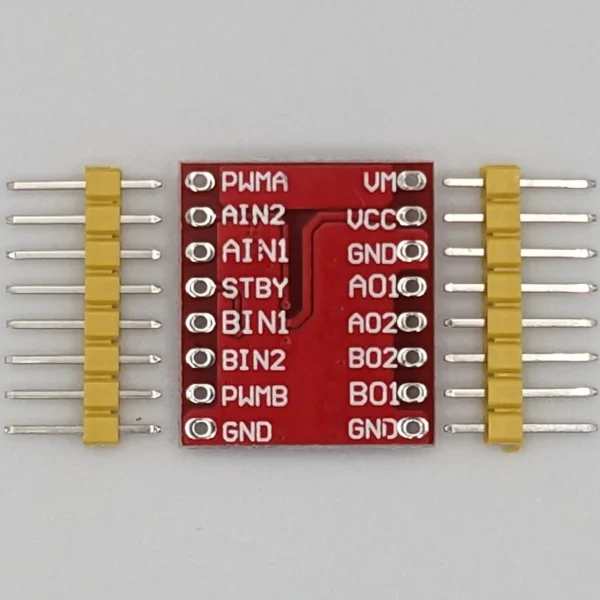

TB6612FNG Motor Driver Breakout Board

TB6612FNG is a popular IC that can simultaneously drive two DC motors or one bipolar stepper motor.

TB6612FNG connects to a microcontroller using a popular IN1, IN2 input signal interface, choosing one of four modes such as CW (clockwise), CCW (counterclockwise), short brake and free coast mode.

Technical Specifications

• Dual-H-bridge motor driver can drive up to two DC motors or a single bipolar stepper motor
• Power supply voltage VM =13.5 V maximum
• Output current IOUT = 1.2 A average, 3.2A peak (2x if driven in parallel)
• Logic voltage (VCC) 2.7 V to 5.5 V
• Low output ON resistance 0.5Ω (upper plus lower) typical at VM ≥ 5 V
• Standby (power save) option
• Built-in thermal shutdown circuit and low voltage detection circuit
• Maximum PWM frequency 100 kHz
• 0.1″ (2.54mm) headers pitch
• On-board filtering capacitors
• Weight with headers approx. 2.4g
• Board size approx. 18.6mm by 20.9mm

Software support

• Kaia.ai Arduino-compatible robot firmware supports IN1, IN2 motor drivers; see TB6612FNG wiring instructions here
• A number of Arduino libraries support TB6612FNG
• Distance between headers 15.36mm (0.6″)

Documentation

• TB6612FNG datasheet

Warnings

• Caution: the IC can get hot during operation
• This product contains small parts. Keep away from children.
