120mm Robot Body

An open-source 3D-printed body for Maker’s Pet MINI robot. Compatible with Maker’s Pet BDC-30P board. Requires assembly.

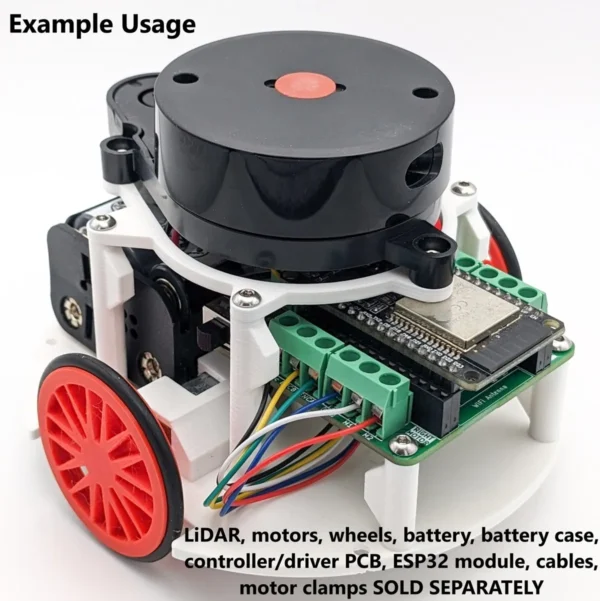

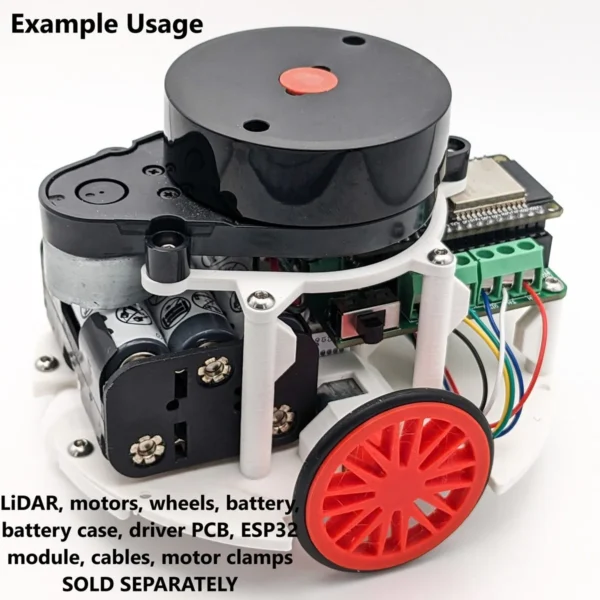

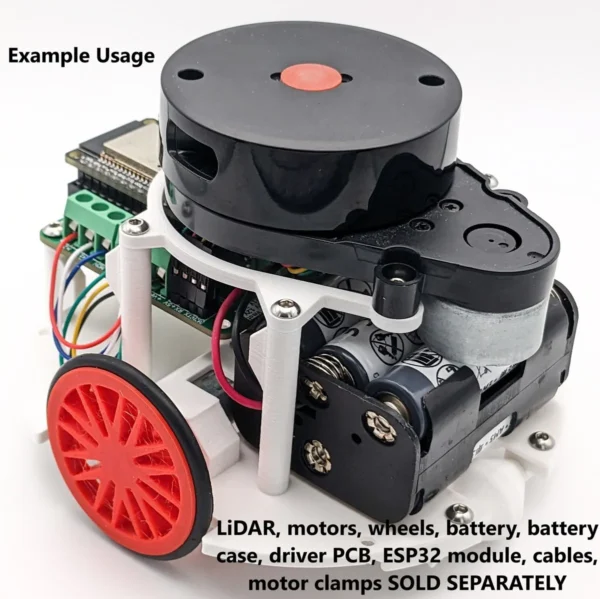

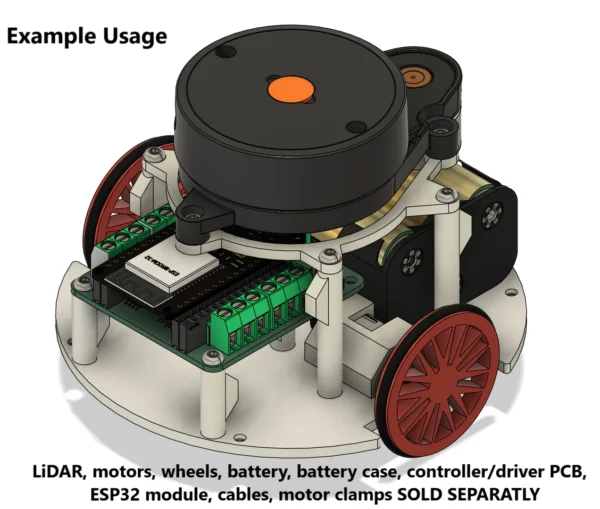

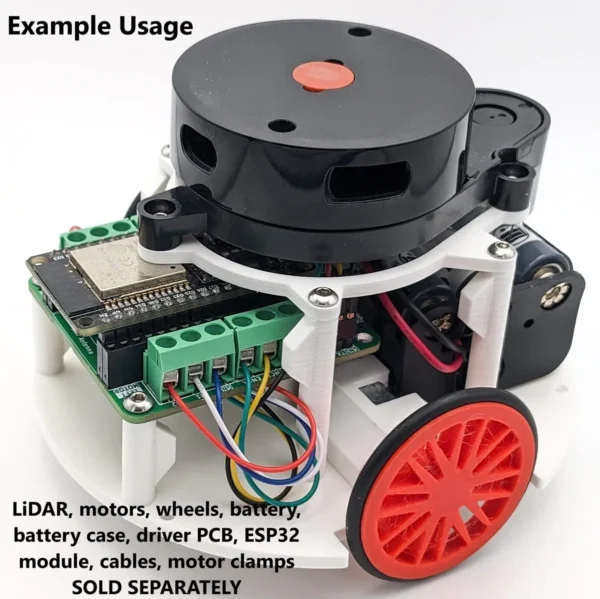

Recommended Use: build a complete LiDAR-enabled DIY Arduino/ROS2 robot capable of room mapping, automatic navigation using the map. All Maker’s Pet robots are expected to be app-capable in 2025 H2.

• Purchase this robot body or 3D-print it yourself at no charge
• Add two 12V N20 encoder motors, two motor precision clamps and two 43mm wheels
• Add a Maker’s Pet BDC-30P controller/driver board with an ESP32 DOIT DevKit v1 compatible board
• Add a LiDAR
  • LDROBOT LD14P (recommended)
  • Mounts available for YDLIDAR X2L, YDLIDAR SCL
  • Other similar-sized LiDAR models might work as well using customized LiDAR posts and skirts.

Assembled product short

Assembly step-by-step instructions

Documentation:

• Complete step-by-step instructions – including assembly, software setup, bring-up, operation and troubleshooting video tutorials
• Download 3MF files and 3D-print it yourself
• Download 3D STEP model

List of Items Included:

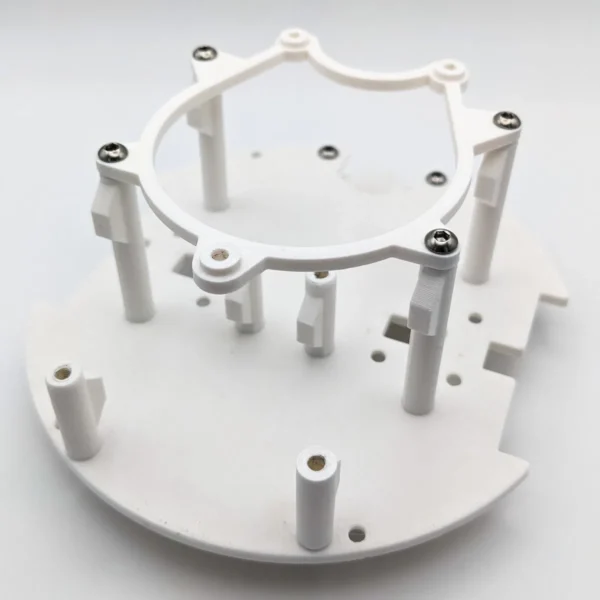

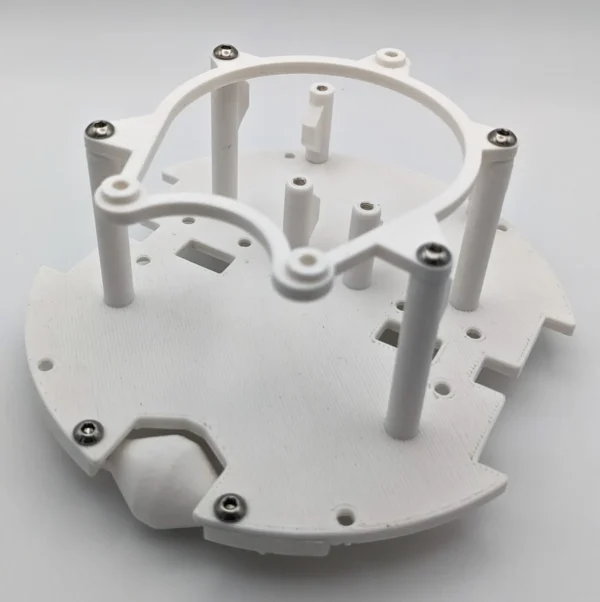

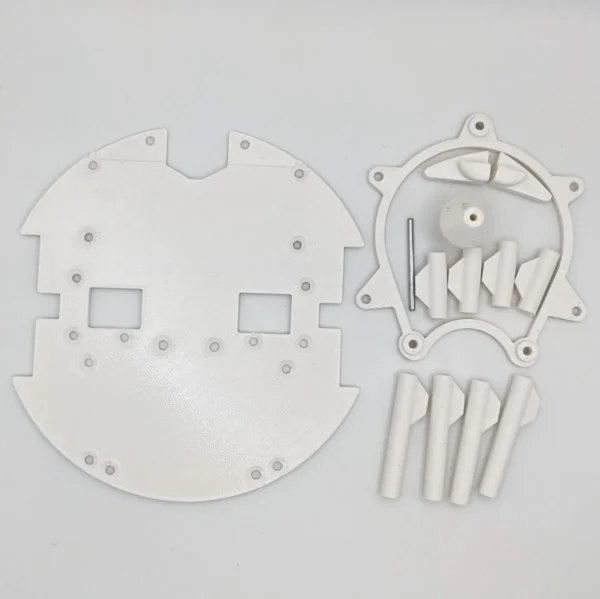

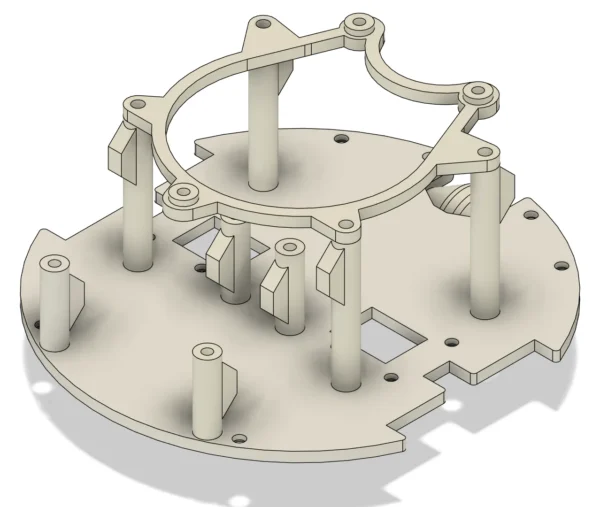

• 4x board posts
• 4x LiDAR posts
• 1x LiDAR skirt compatible with LDROBOT LD14P
• 1x caster roller
• 1x caster metal shaft
• 1x pair of caster mounts
• 14x M3 6mm cross flat countersunk screws
• 13x M3 6mm hex button screws
• 1x steel hex Allen key

Technical Specifications:

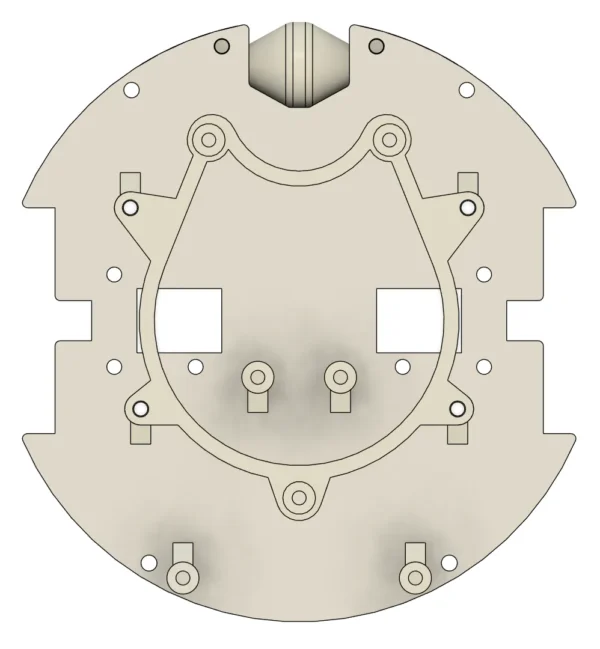

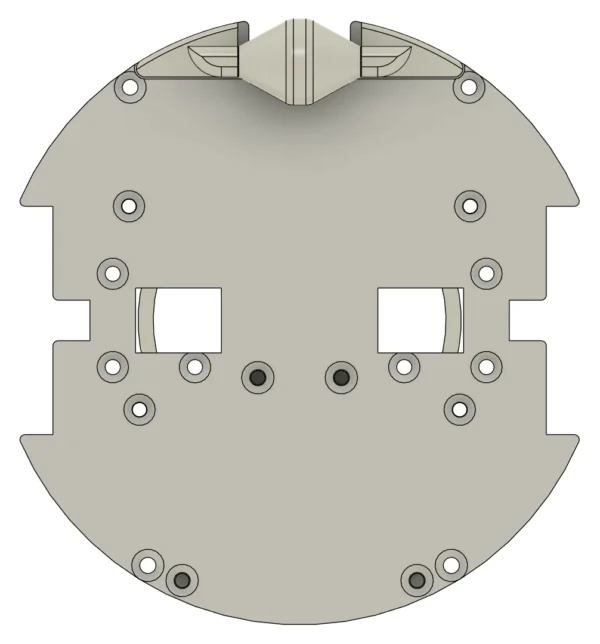

• 120mm base diameter
• Height as measured from the floor to top of LiDAR
  • Approx. 94.25mm for YDLIDAR X2L
  • Approx. 86.15mm for LDROBOT LD14P
  • Approx. 85.9mm for YDLIDAR SCL
• 3D printed using PETG plastic
  • There may be stringing left over after 3D printing. The stringing does not affect the functionality.
• Weight approx. 50g including screws

3D Printing Instructions:

• I recommend using PETG. PLA is also acceptable unless your robot is exposed to the sun.
• Set Seam Position to Random in your slicer when printing the caster wheel. Without this setting the caster can make a rhythmic knocking sound when rolling over hard floors.

Technical Support

• Visit our support forum. Both hardware and software questions are welcome.
• View instruction videos on our YouTube channel
• Join our Facebook robotics groups here, here and here (software)

Warnings:

• This product contains small parts. Keep away from small children.
