LDROBOT LD14P LiDAR

LDROBOT LD14P LiDAR I use a lot to build my DIY robots. 0.1-8m range, 2-8Hz scan speed, 4K points per second with a relatively low typical power consumption of 5V 300mA.

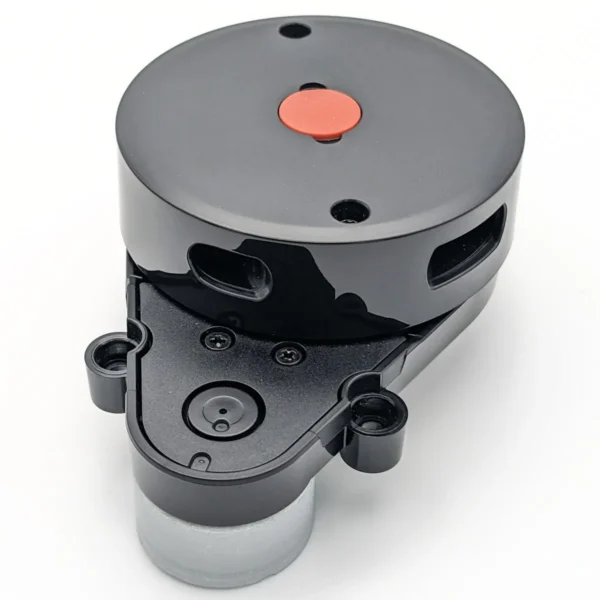

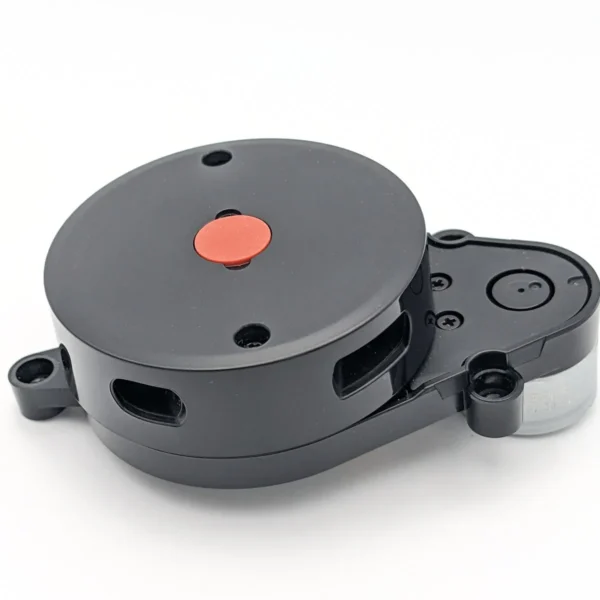

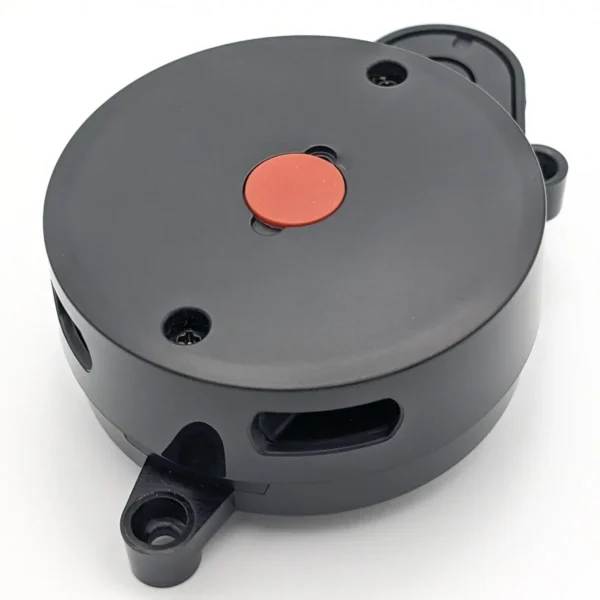

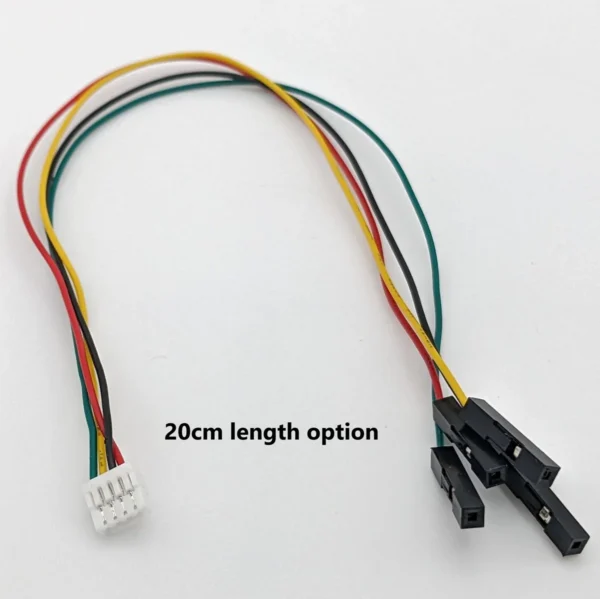

Included is the LiDAR (no retail box) and a 20cm DuPont female breakout cable.

Recommended Use:

• Connect to Maker’s Pet ESP32-based robot controller/driver boards (BDC-30P, BDC-38C4, etc.) to build an Arduino/ROS2 robot using this breakout cable
• Connect directly to 2.54mm DuPont male header on an ESP32 DevKit module, Raspberry Pi, Raspberry Pi Pico, NVIDIA Jetson Nano, various Arduino/ARM/STM/etc. MCU/CPU boards using this breakout cable
• Connect to a PC using a USB-to-Serial adapter
  • Embedded devices having a USB 2.0 or faster port and running Linux like Raspberry Pi, NVIDIA Jetson Nano might also work.

Documentation:

• Manufacturer datasheet (Chinese)
• Manufacturer product page
• Arduino ESP32 wiring tutorial
• Additional resources including protocol, 3D STEP model, wiring

Software support:

• Manufacturer SDK and ROS2 driver
• Kaia.ai Arduino LiDAR library
• Kaia.ai Arduino ESP32-based robot firmware and associated ROS2 PC software with installation instructions

Technical Specifications:

• Range 0.1-8m for an 80% reflectivity target, 0.1-6m for a 4% reflectivity target
  • See the datasheet for range measurement error details
• Revolution speed 2-8Hz, 6Hz default
• Measurement frequency 4000 points per second
• Viewing angle 360°; triangulation measurement method
• IEC-60825 Class 1 laser safety, 793mm NIR 10mW laser
• Service life 2.2K Hours
• Size L96.3 W59.8 H38.8mm
• Start-up time 3.5s max, 3s typical
• Max ambient illumination 80K Lux (see datasheet)
• Angular resolution 0.54° at 6Hz
• Zero angle deviation: ±0.5°
• Pitch angle deviation 0°-1.0°
• Speed error ±10RPM at 360RPM (6Hz)
• Power 5V, 1A max (on spin-up), 0.3A typical

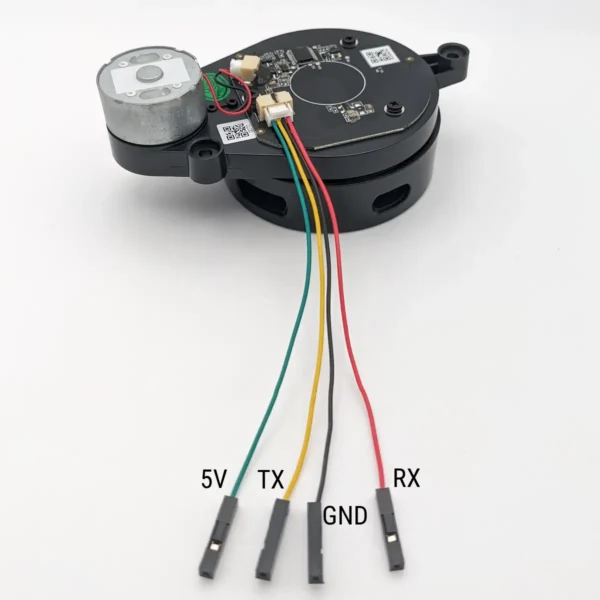

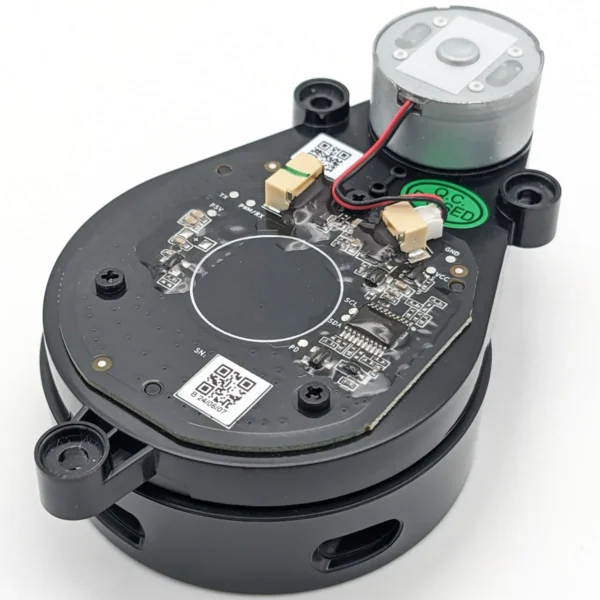

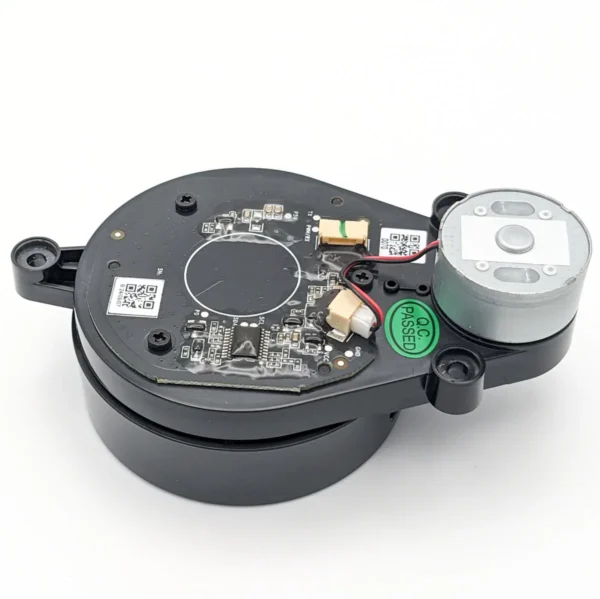

• 4-pin interface: 5V, GND, TX, RX; serial baud 230400
• Weight approx. 100g
• Certification: CE, FCC, RoHS

Items included:

• 1x LDROBOT LD14P LiDAR sensor (no retail packaging)
• 1x 20cm DuPont female breakout cable

Technical Support

• Visit our support forum. Both hardware and software questions are welcome.
• Browse or create Kaia.ai firmware and software issues
• View instruction videos on our YouTube channel
• Join our Facebook robotics groups here, here and here (software)
